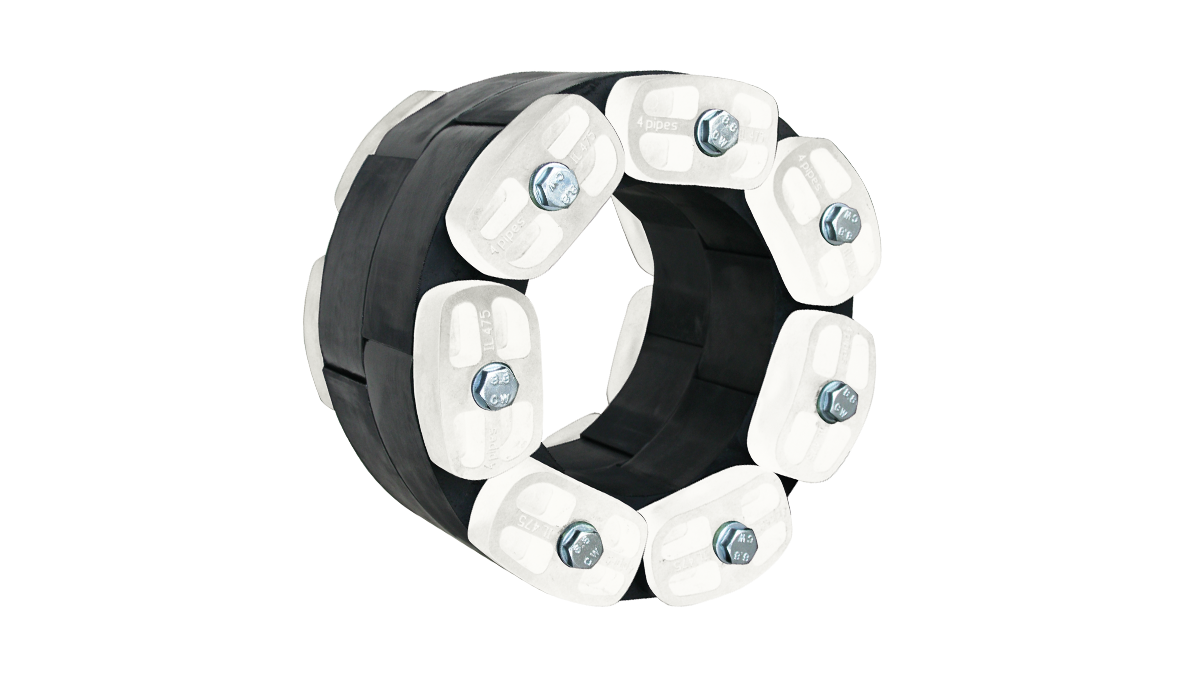

PRESSIO®-Elements
PRODUCT INFORMATION
PRESSIO®-Elements modular wall penetration seals are an excellent choice to seal annular spaces between wall and pipe/cable securely so they are watertight and gas-tight. PRESSIO®-Elements modular seals can be used flexibly because of their variable sizes for different combinations of wall sleeves/core holes and carrier pipes. These seals prevent leaks in case of gas and high external water pressure.
APPLICATION

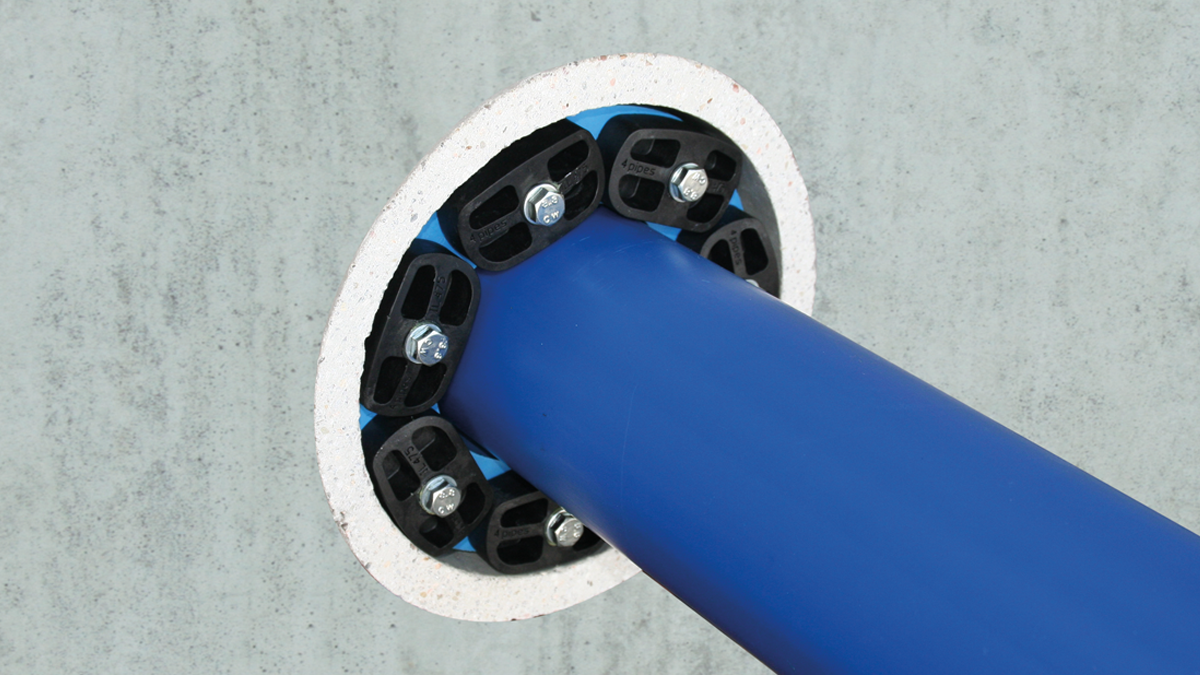

By compressing the rubber between the polyamide pressure plates, a gas-tight and watertight closure of the annular space between the carrier pipe and the casing pipe can be achieved. PRESSIO®-Elements modular seals can always be used for retrofit application.
PRESSIO®-Elements modular wall pentration seals are not suitable for especially thin-walled plastic pipes (e.g. flexible preinsulated pipe). Here we recommend PRESSIO® Seals for district heating pipes.
PRESSURE RATING AND MFPA TEST

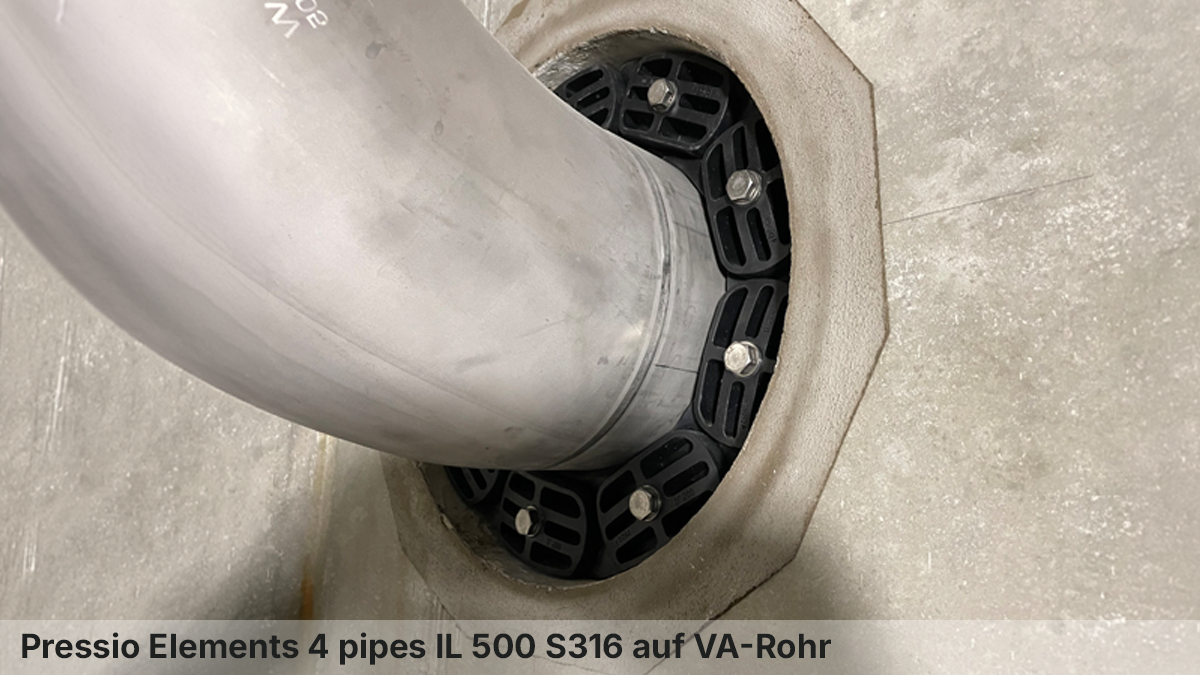

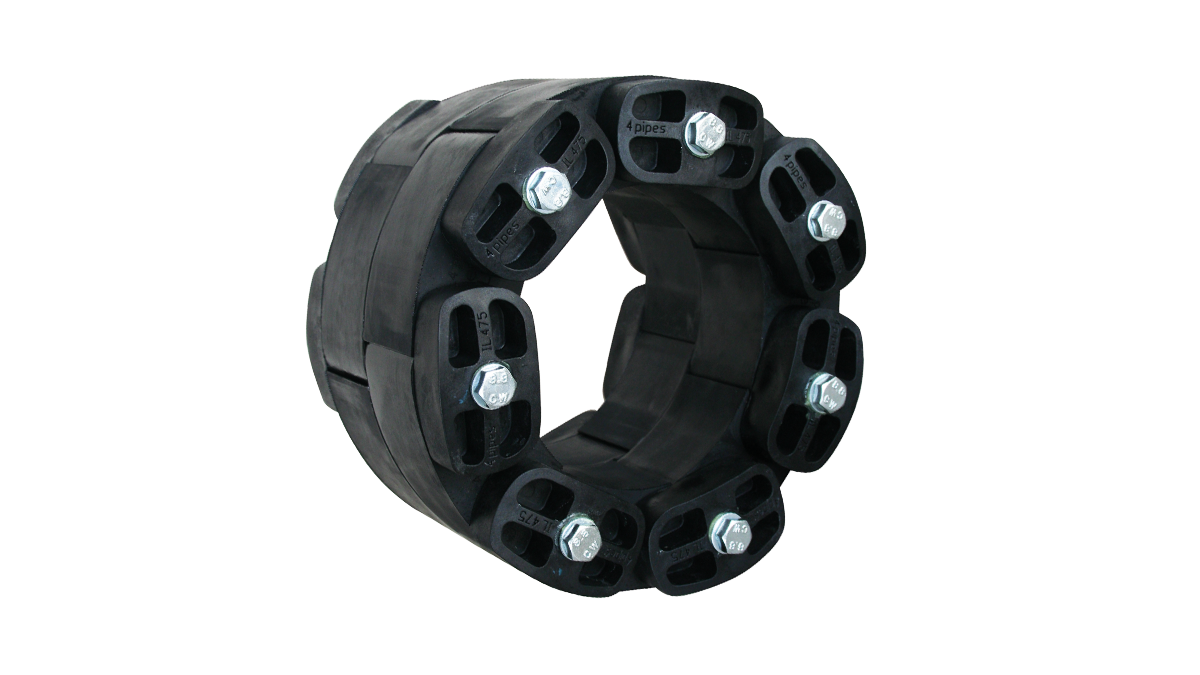

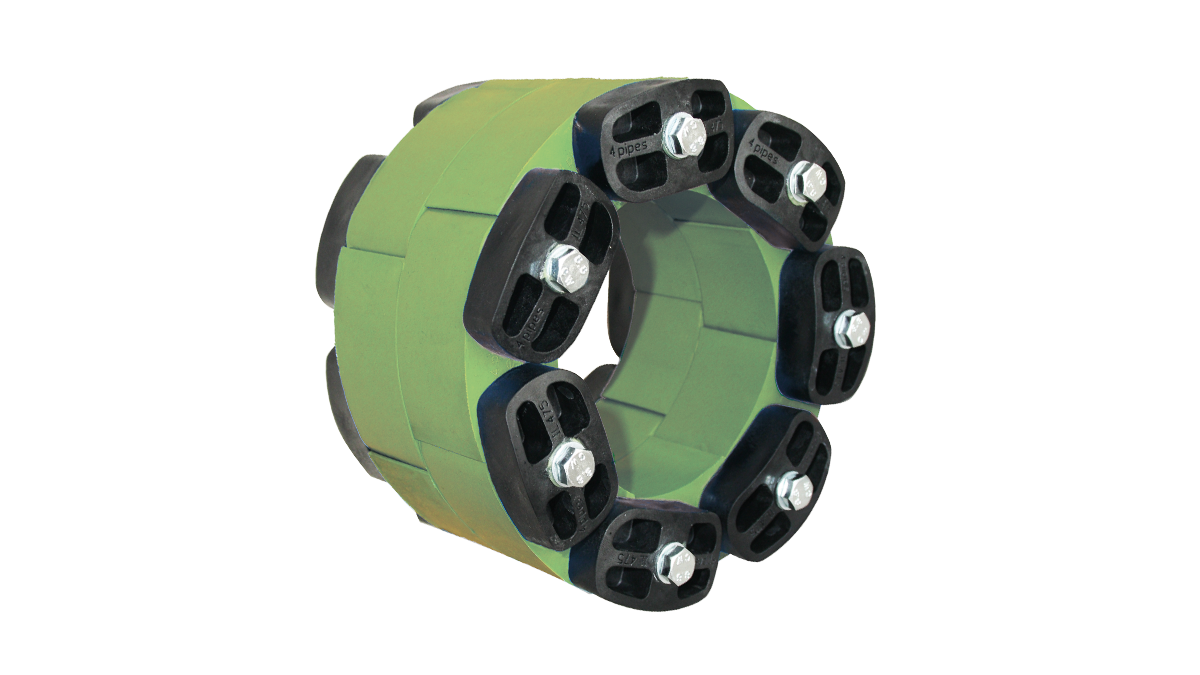

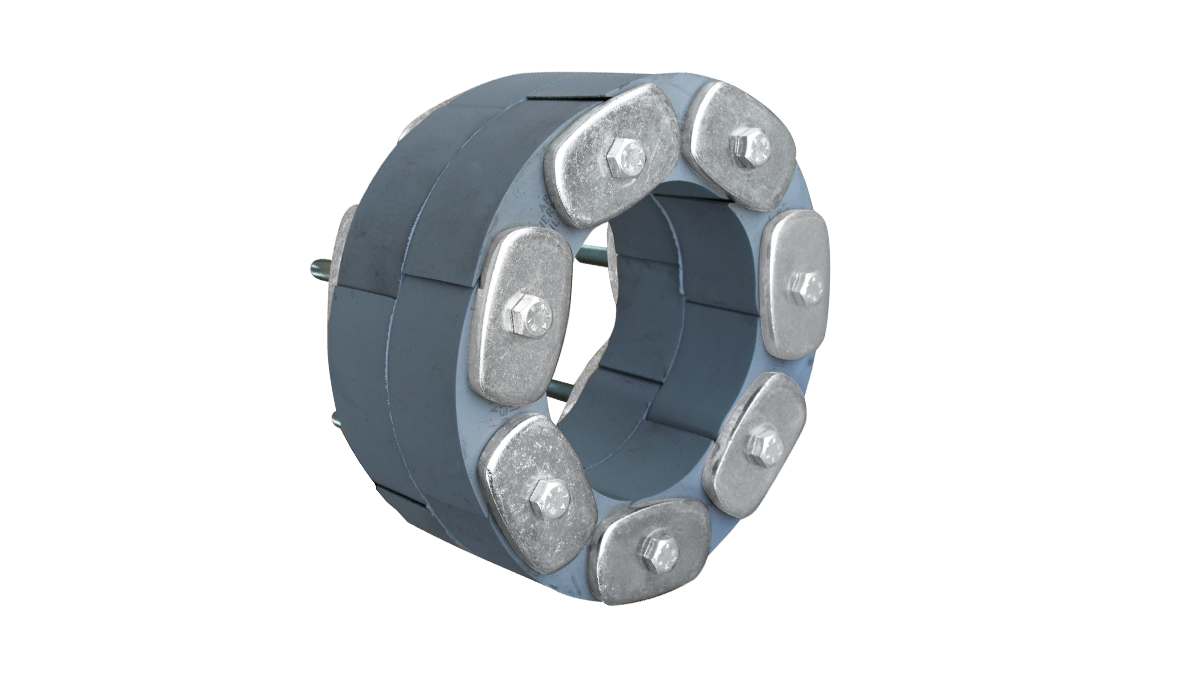

- type C, S 316, OC, OS316, KTW/W270 and TS up to 5.0 bar pressure tight

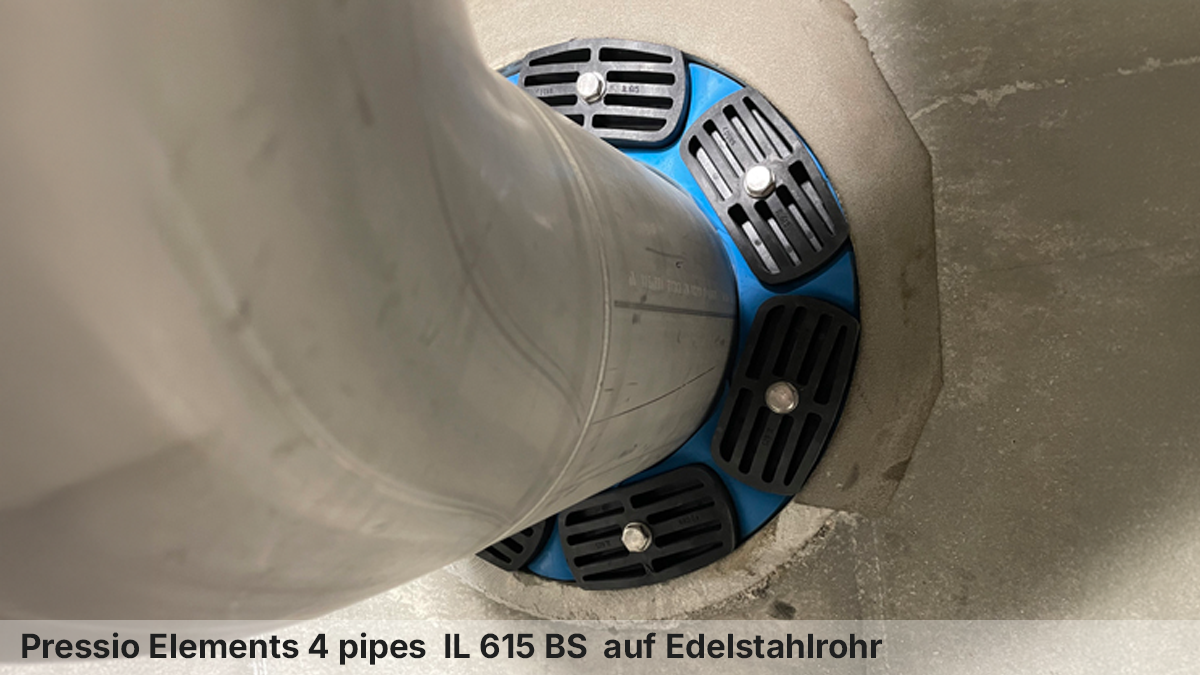

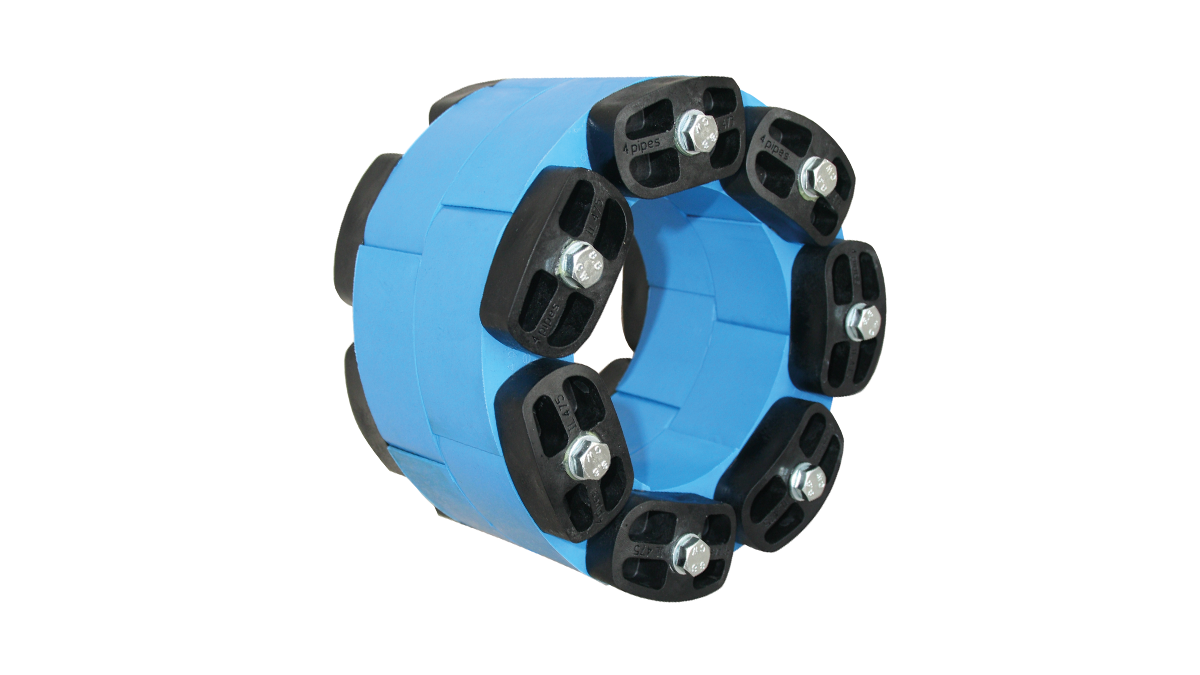

- type BC and BS 316: up to 3.0 bar pressure tight
- Drinking water quality according to DVGW W270, Elastomer guideline of UBA / KTW - BWGL Declaration of Conformity
- Radon tight, gas tight
- Fire class E acc. to EN13501-1 (formerly B2) normal flammability To calculate the right PRESSIO®-Elements our calculation programme via our website http://www.4pipes.de is at your disposal.
ADVANTAGES
- Made of high quality materials
- Fast mounting
- Retrofit application possible
- Applicable for various constructions
- Cost-efficent solution
- Fast delivery, standard versions in stock
- Different colours make the various rubber qualities easily distinguishable
- electrical isolation between pipe and sleeve
- noise protection
- anti vibration application
- Easy storage
- Radon tight, gas tight
