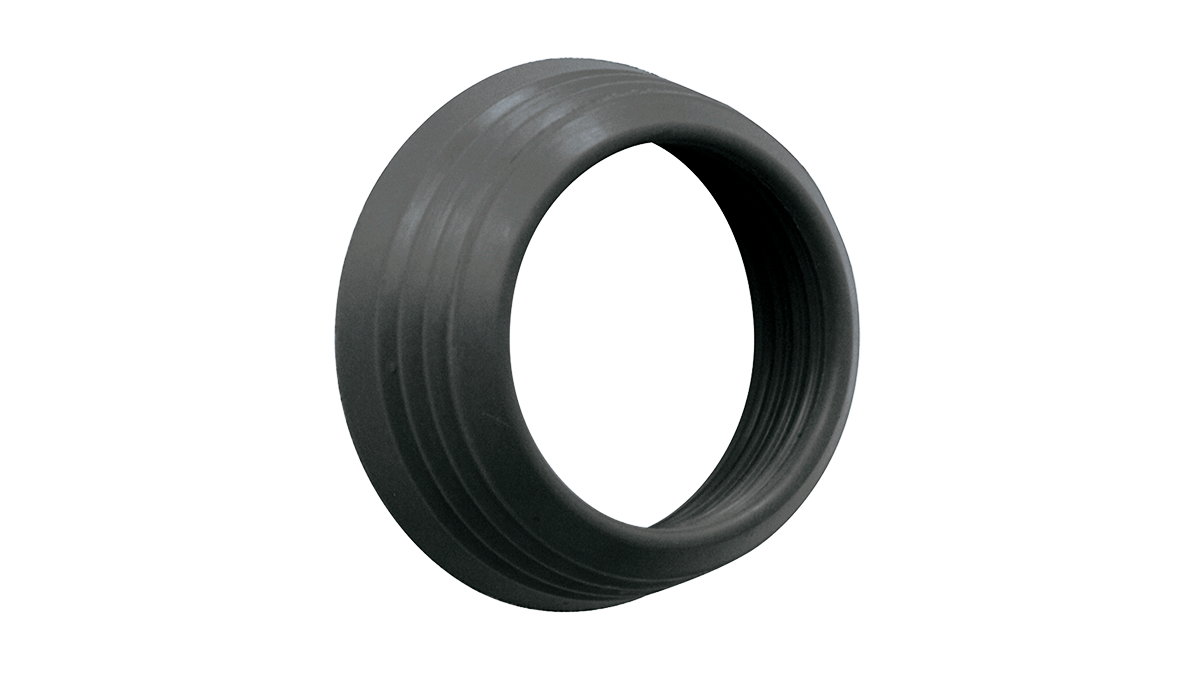

Labyrinth Wall Penetration Seals
Product-ID: 4pLab
PRODUKT INFORMATION
Labyrinth seals are directly cast into the wall at building wall penetrations, especially on preinsulated pipelines for district heating as a water stop that is tight against low external water pressure. The high-quality rubber ensures an extremely secure seal. Our PRESSIO wall penetration seal is suitable as a water stop that is tight against high external water pressure.
APPLICATION
Labyrinth seals are mainly applied on preinsulated pipelines (PE-jacket or flexible district heating pipelines).
- Pressure tight up to 0.3 bar water pressure
ADVANTAGES
- Fast mounting because no tensioning steel straps are necessary
- High-quality rubber ensures an extremely secure seal (up to pipe size 200 mm moulded in one piece)
- Tested Radon Tightness For KMR vailable sizes OD 65 mm up to OD 1400 mm.
INSTALLATION
1. Push Labyrinth seal over the cleaned casing pipe Stretchable to tolerances acc. to EN253
2. Cast Labyrinth seal as a waterstop directly in the middle of the wall
