Compenseal®
PRODUCT INFORMATION

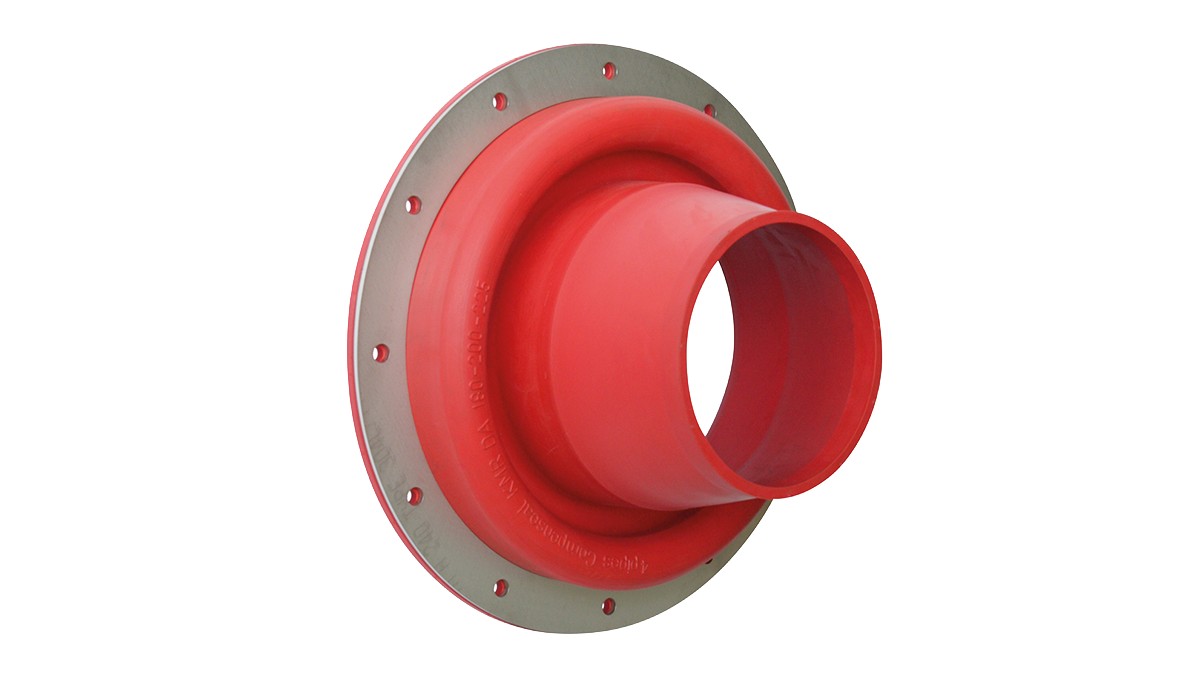

Special flexible sealing collar made out of high quality EPDM elastomer for wall penetrations at pipelines which are exposed to movements. The seal is extremely suitable for axial and radial pipe movement as well as any subsidence or sagging, and it is tight against high external water pressure.
USAGE

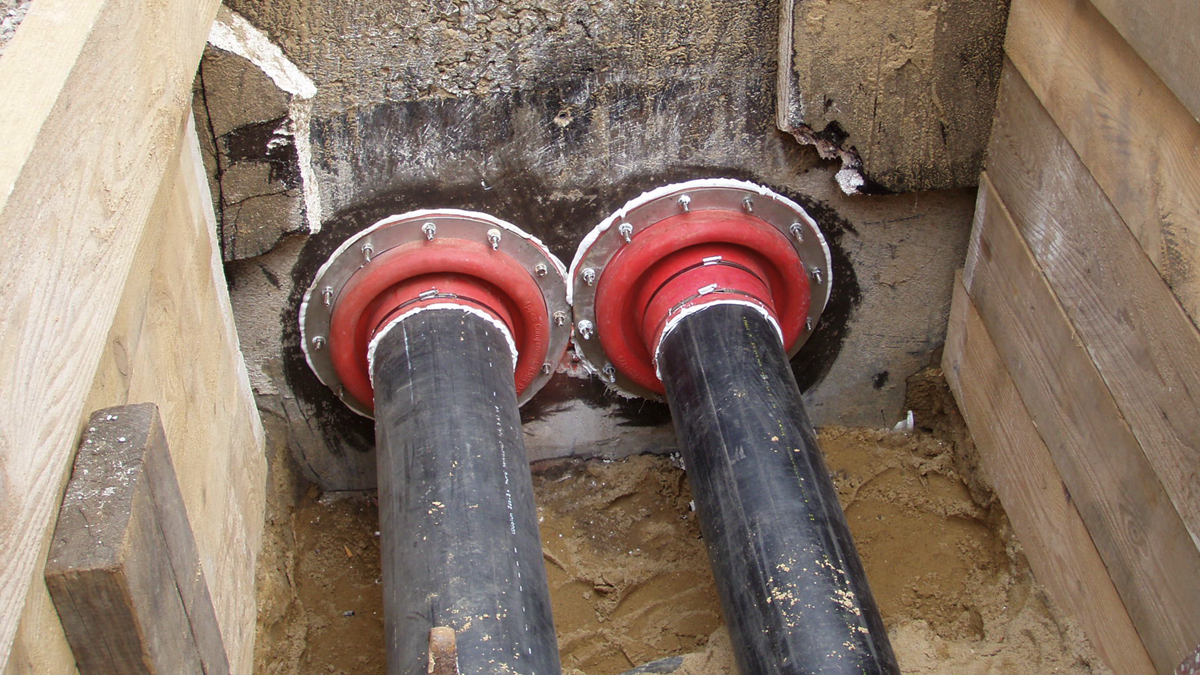

As a movement compensator, the sealing collar is perfectly suited for preinsulated pipe penetration through walls and ceilings on buildings.
- Water pressure tight up to 1.0 bar
ADVANTAGES
- suitable for axial and radial pipe movement up to +/- 40 mm
- suitable in case of subsidence or sagging, depending on outside pipe diameter and core hole sizes up to 40 mm
- ideal movement compensator DIMENSIONS Standard for outside pipe diameter 75 mm up to 800 mm and core bores 150 mm up to 900 mm.
COMPLETE SET

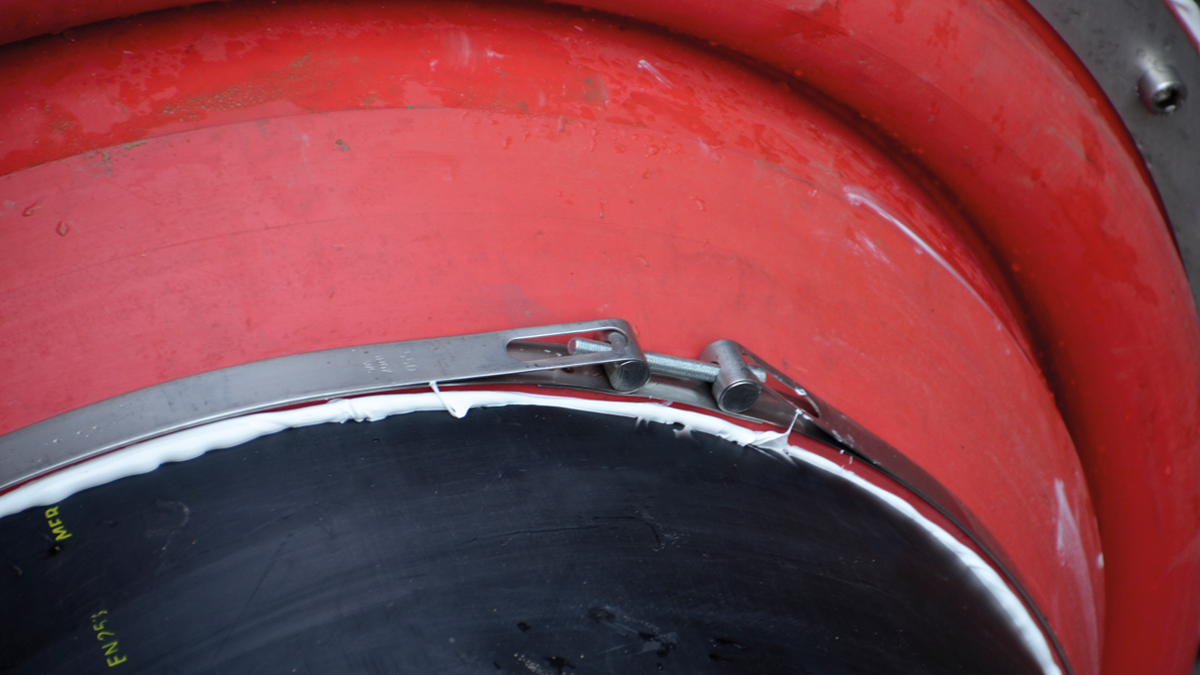

The seal is supplied with one component PU sealant, stainless steel straps, 12 mm stainless steel hexhead screws and 14 mm dowels as a complete set. The 4 pipes warranty only applies to faulty material. Checking the suitability of the product for the individual application is solely the responsibility of the user. and easy. The plug can be cut to be used as an open product for retrofit applications.
Accessories / Extensions
